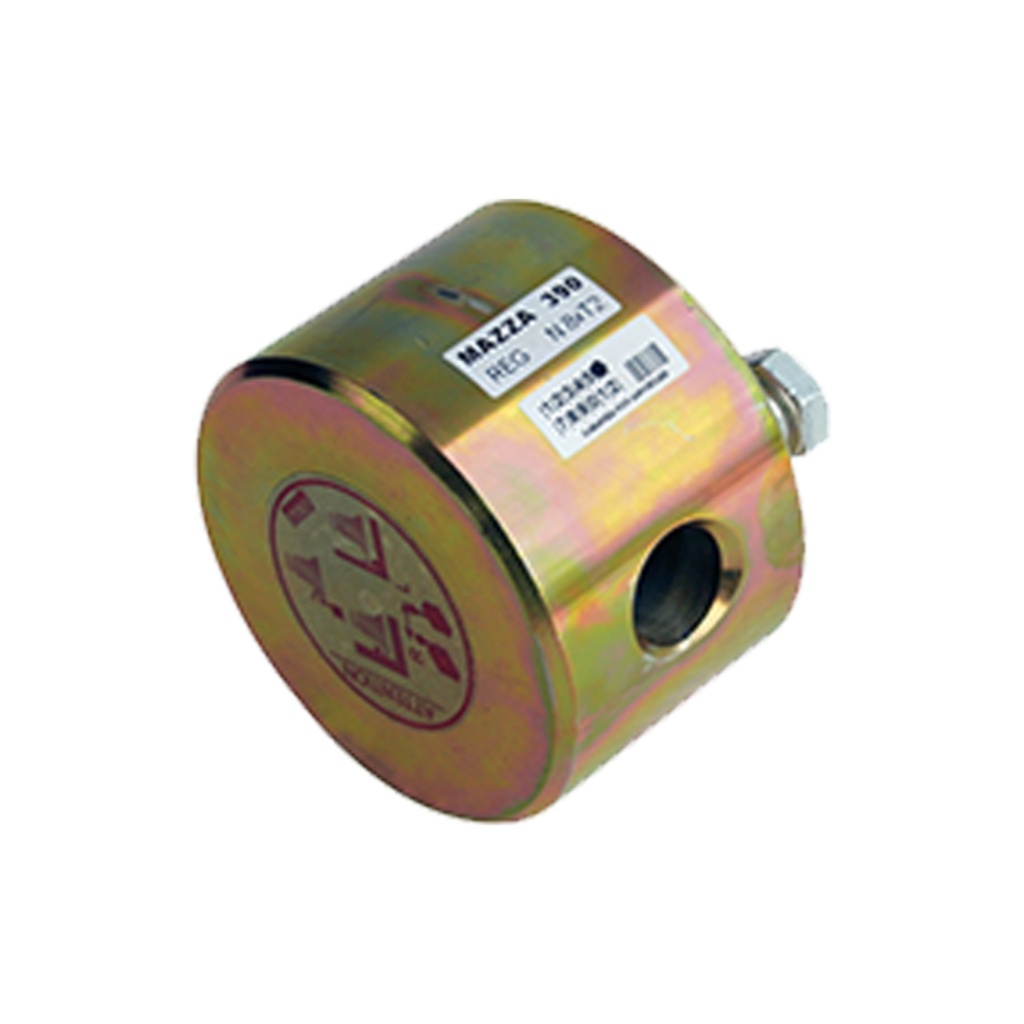

Adjustable Hammer for Striker ELE10-15 – For Bells up to 1500kg
The adjustable hammer must be properly dimensioned based on the weight of the bell and the striker used.
Each hammer must be paired with a compatible rod to ensure correct fastening and proper adjustment of the arm length.
Compatibility: ELE10-15
Selection guidelines: Select the bell weight — based on the selected value, the compatible hammer (marked with a number) will be automatically suggested to ensure a proper and effective strike.
Refer to the table below to identify the hammer compatible with your striker.
|
HAMMER CODE |
WEIGHT BELL (Kg) |
HAMMER NUMBER |
STRIKER CODE |
|
MAZ1004012 |
60 |
N. 3 |
ELE10 |
|
MAZ1004012 |
72 |
N. 3 |
ELE10 |
|
MAZ1004012 |
85 |
N. 3 |
ELE10 |
|
MAZ1004013 |
100 |
N. 4 |
ELE10 |
|
MAZ1004013 |
120 |
N. 4 |
ELE10 |
|
MAZ1004013 |
140 |
N. 4 |
ELE10 |
|
MAZ1004013 |
170 |
N. 4 |
ELE10 |
|
MAZ1004014 |
200 |
N. 5 |
ELE10 |
|
MAZ1004014 |
245 |
N. 5 |
ELE10 |
|
MAZ1004014 |
290 |
N. 5 |
ELE10 |
|
MAZ1004014 |
340 |
N. 5 |
ELE10 |
|
MAZ1004014 |
410 |
N. 5 |
ELE10 - ELE1504001 |
|
MAZ1004015 |
480 |
N. 6 |
ELE10 - ELE1504001 |
|
MAZ1004015 |
550 |
N. 6 |
ELE10 - ELE1504001 |
|
MAZ1004016 |
680 |
N. 7 |
ELE1504001 |
|
MAZ1004017 |
810 |
N. 8 |
ELE1504001 |
|
MAZ1004018 |
980 |
N. 9 |
ELE1504001 |
|
MAZ1004019 |
1200 |
N. 9 |
ELE1504001 - 002 |
|
MAZ1004019 |
1400 |
N. 10 |
ELE1504001 - 002 |
|
MAZ1004019 |
1680 |
N. 10 |
ELE1504002 |
| Bell Weight (Kg) | 60 or 72 or 85 or 100 or 120 or 140 or 170 or 200 or 245 or 290 or 340 or 410 or 480 or 550 or 680 or 810 or 980 or 1200 or 1400 or 1680 |
| Hammer Number | N. 3 or N. 4 or N. 5 or N. 6 or N. 7 or N. 8 or N. 9 or N. 10 |
