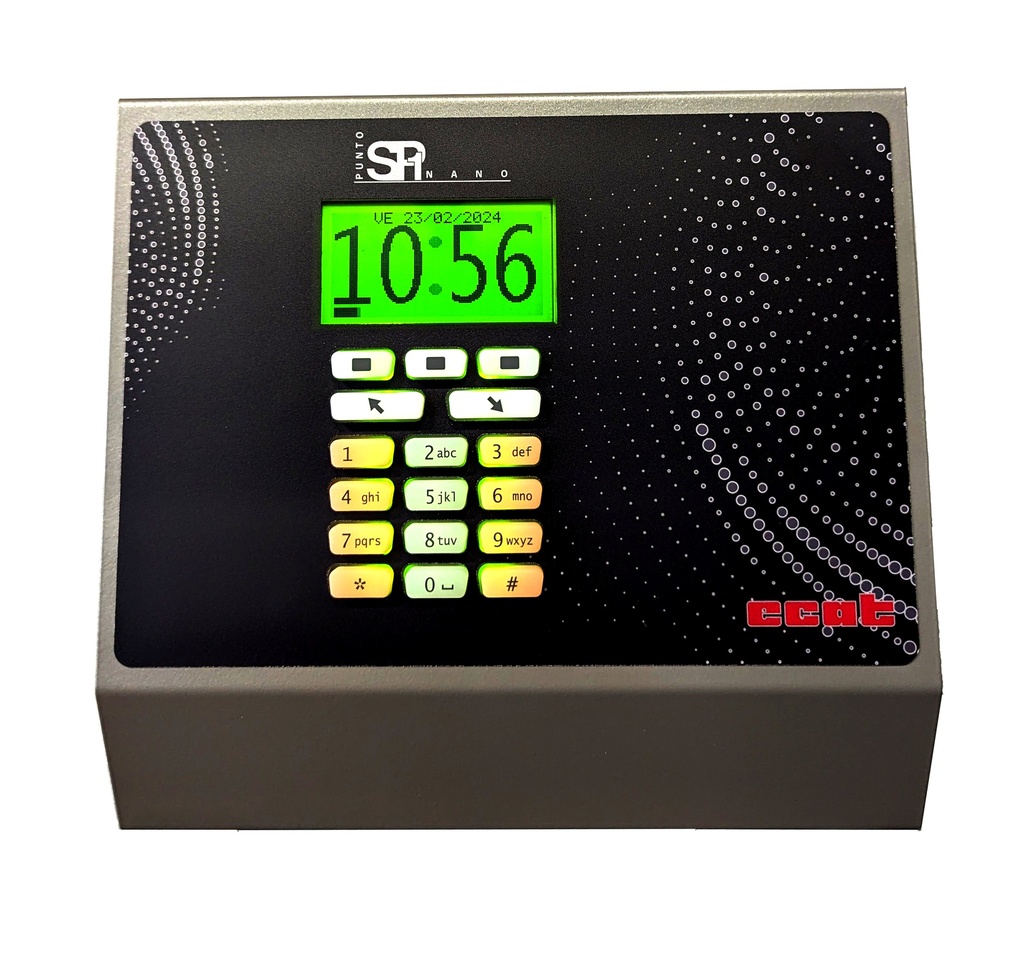

Master Clock SP1.Nano Compact

https://ecat1.odoo.com/web/image/product.template/284/image_1920?unique=665aa89
Punto SP1 Nano is a compact master clock designed to keep the time on connected clock dials correct and synchronized.
It is ideal for small time systems, tower clocks and façade clocks, with automatic or manual control of the main system functions.

0.00 € 0.0 EUR 0.00 € Tax Excluded

699.00 € Tax Excluded

Please login or register

  • Power Supply
  • Power Supply
  • Case
  • Size
  • Relay outputs
  • Communication Protocol

This combination does not exist.

Access the B2B portal

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Punto SP1 Nano is the compact version of the SP1 series, designed for the simple and automated management of small time systems.

The device keeps the time displayed on connected clock dials synchronized, such as tower clocks, façade clocks and other time systems. It sends the required commands to the connected components, ensuring that the hands keep the correct time reliably.

Punto SP1 Nano can operate in both automatic and manual mode, allowing users to manage the main system functions easily, without requiring advanced technical skills.

Thanks to the backlit keypad and high-contrast display, programming is clear and easy to read, even in low-light environments.

Connection to remote devices is provided via a 3-wire RS485 connection, simplifying wiring compared to traditional solutions.

The compact and robust metal case allows a clean installation, even in limited technical spaces.

Punto SP1 Nano is a practical and reliable solution for synchronizing and controlling small time systems.

TECHNICAL SPECIFICATIONS

  • Easy-to-install and wire metal enclosure
  • Dimensions (W x H x D): 217 x 200.40 x 65.70 mm
  • 4 programmable relay outputs, max 250V 10A
  • Multi-voltage power supply: AC 110/220V
  • Opto-isolated RS485 bus output for connection to remote devices
  • Input for DCF77 time signal receiver
  • SD Card slot for writing and reading programming data
  • USB port for writing and reading programming data from a PC, or for direct playback/recording of melodies from PC
  • Quick access to up to 12 preloaded functions

Power Supply 110 V, 220 V
Case Easy to assemble and wire metal box
Size 217L ​​x 200.40H x 65.70D
Relay outputs Opto-isolated 485 bus output for connection to remote devices
Communication Protocol Opto-isolated 485 bus output for connection to remote devices

Product weight: 1.5 kg

Product volume: 0.0094 m³

SKU:
