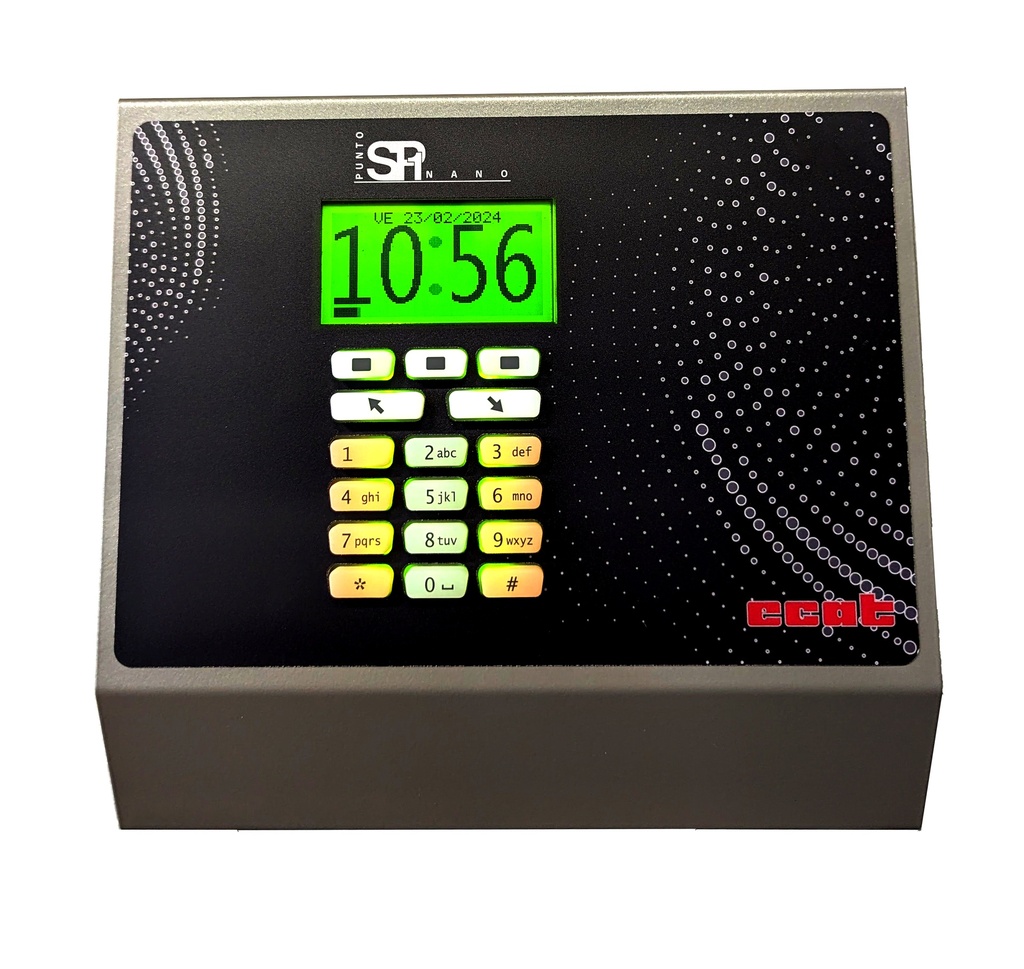

Master Clock SP1.Nano Compact – Basic Operations, Ideal for Small Systems

https://shop.ecat.it/web/image/product.template/284/image_1920?unique=f34bb84
The compact version of the Punto SP1 series. Punto SP1 Nano is the ideal solution for automated time signal management in ecclesiastical settings. Designed to offer maximum programming flexibility, it can operate in both automatic and manual modes, without requiring any technical expertise from the user.

0.00 € 0.0 EUR 0.00 € Tax Excluded

699.00 € Tax Excluded

Please login or register

  • Power Supply
  • Power Supply
  • Case
  • Size
  • Relay outputs
  • Communication Protocol

This combination does not exist.

Access the B2B portal

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Punto SP1 Nano is the ideal solution for automated time signal management in ecclesiastical settings. Designed to offer maximum programming flexibility, it can operate in both automatic and manual modes, without requiring any technical expertise from the user.

Key features:
High-brightness backlit keypad with strong contrast for easy reading, even in low-light conditions.

No traditional electrical connection required: the clock communicates with the bell control panel via a 3-wire RS485 connection.

Compact design: the sturdy, small-sized metal housing allows for easy installation and minimal visual impact, making it perfect for discreet integration into sacred spaces.

Punto SP1 Nano is the compact and cost-effective version of the renowned SP1 series—combining reliability, simplicity, and advanced technology to meet the needs of modern liturgical settings.

TECHNICAL SPECIFICATIONS

  • Easy-to-install and wire metal enclosure
  • Dimensions (W x H x D): 217 x 200.40 x 65.70 mm
  • 4 programmable relay outputs, max 250V 10A
  • Multi-voltage power supply: AC 110/220V
  • Opto-isolated RS485 bus output for connection to remote devices
  • Input for DCF77 time signal receiver
  • SD Card slot for writing and reading programming data
  • USB port for writing and reading programming data from a PC, or for direct playback/recording of melodies from PC
  • Quick access to up to 12 preloaded functions

Power Supply 110 V, 220 V
Case Easy to assemble and wire metal box
Size 217L ​​x 200.40H x 65.70D
Relay outputs Opto-isolated 485 bus output for connection to remote devices
Communication Protocol Opto-isolated 485 bus output for connection to remote devices

Product weight: 1.5 kg

Product volume: 0.0094 m³

SKU:
