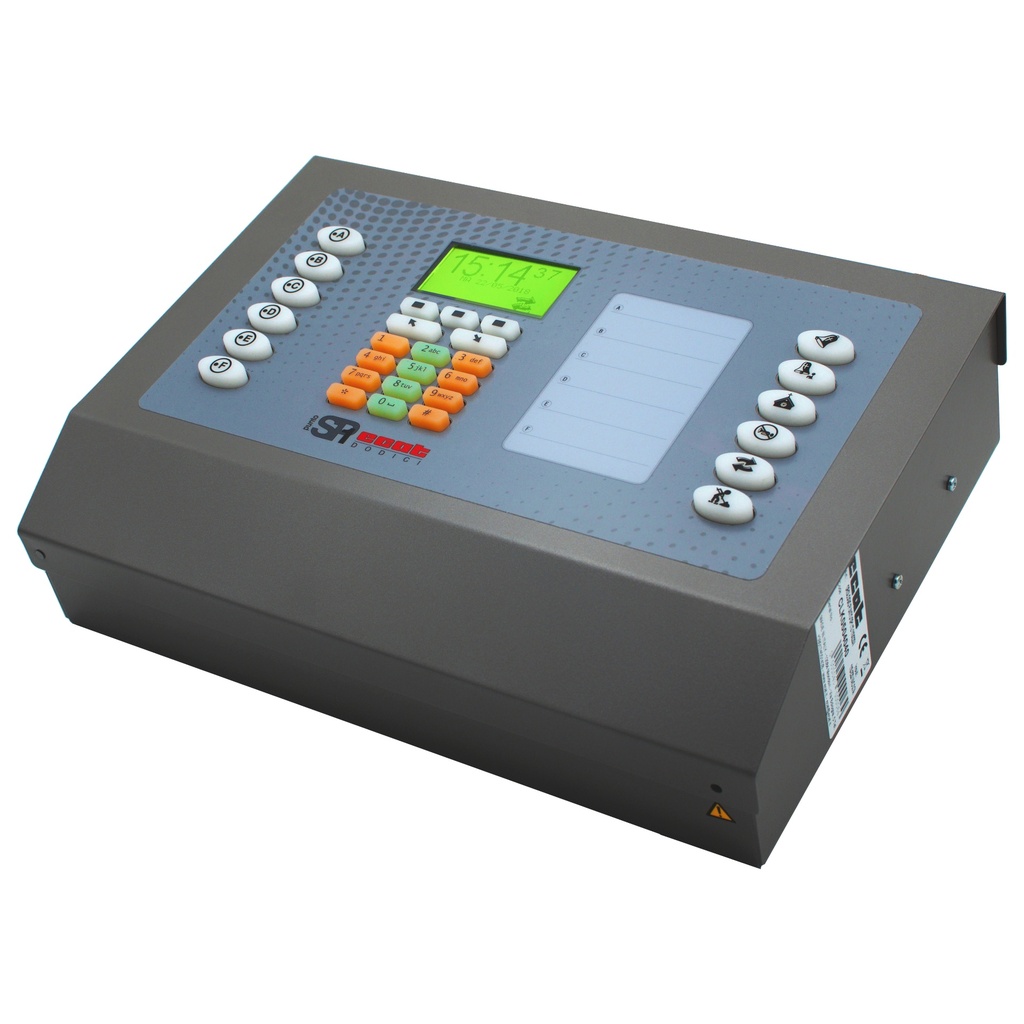

SP1.DODICI Master Clock – 12 Programmable Outputs and MIDI Keyboard Slot
Punto SP1 Dodici is a master clock with flexible programming, designed for more complete installations compared to the compact models in the SP1 range.
It is suitable for tower clocks, systems with multiple clock dials, bell control systems, public buildings, churches and civic installations where several functions need to be managed from a single device.
The device keeps the time displayed on connected clock dials synchronized and controls the main elements of the system, such as secondary clocks, relay outputs, electric hammers, moving bells and programmed functions.
Thanks to its 12 internal outputs, Punto SP1 Dodici offers greater control capacity than simpler models and is suitable for installers who need to configure systems with multiple commands, calendars, bell ringing programs or recurring events.
Programming can be adapted to the needs of the installation: automatic functions, manual commands, special events, holidays, Easter calculation and customized annual calendar management.
The device can be synchronized via GPS, NTP server or DCF77 signal, depending on the system configuration. It is also compatible with a GSM module for remote control via SMS or mobile app.
The backlit keypad and multilingual menu make operation clearer even in more complex installations, while the USB port and memory card allow programming management and data backup.
Punto SP1 Dodici is the right solution for users looking for a complete, configurable and professional master clock for medium-complexity time and bell control systems.
TECHNICAL SPECIFICATIONS
- Simple and intuitive interface;
- Function keys for quick access to programming
- Shortcut keys for immediate programming
- High-contrast backlit keypad, accessible to users with visual impairments
- Memory card for program backup
- USB port;
- Multilingual menu;
- Ability to manage up to 32 bells, 32 electric strikers, 16 moving bells;
- Synchronization via GPS, NTP server, DCF77
- GSM connectivity and smartphone app (Android/iOS) for remote control
- MIDI compatibility;
- Manual execution and recording of melodies;
- High customization of programmable events;
- Manual execution and recording of melodies;
- Calculation of Easter and Easter holidays;
- Multi-level password protection (up to 6 levels) to manage device accessibility.
| Keyboard | backlit, high-contrast keyboard, suitable for visually-impaired users |
| Case | Metal |
| Channels | 40 external output, 12 internal outputs |
| Data Storage | Memory card, USB port |
Product weight: 3.8 kg
Product volume: 0.0086 m³
SKU:
