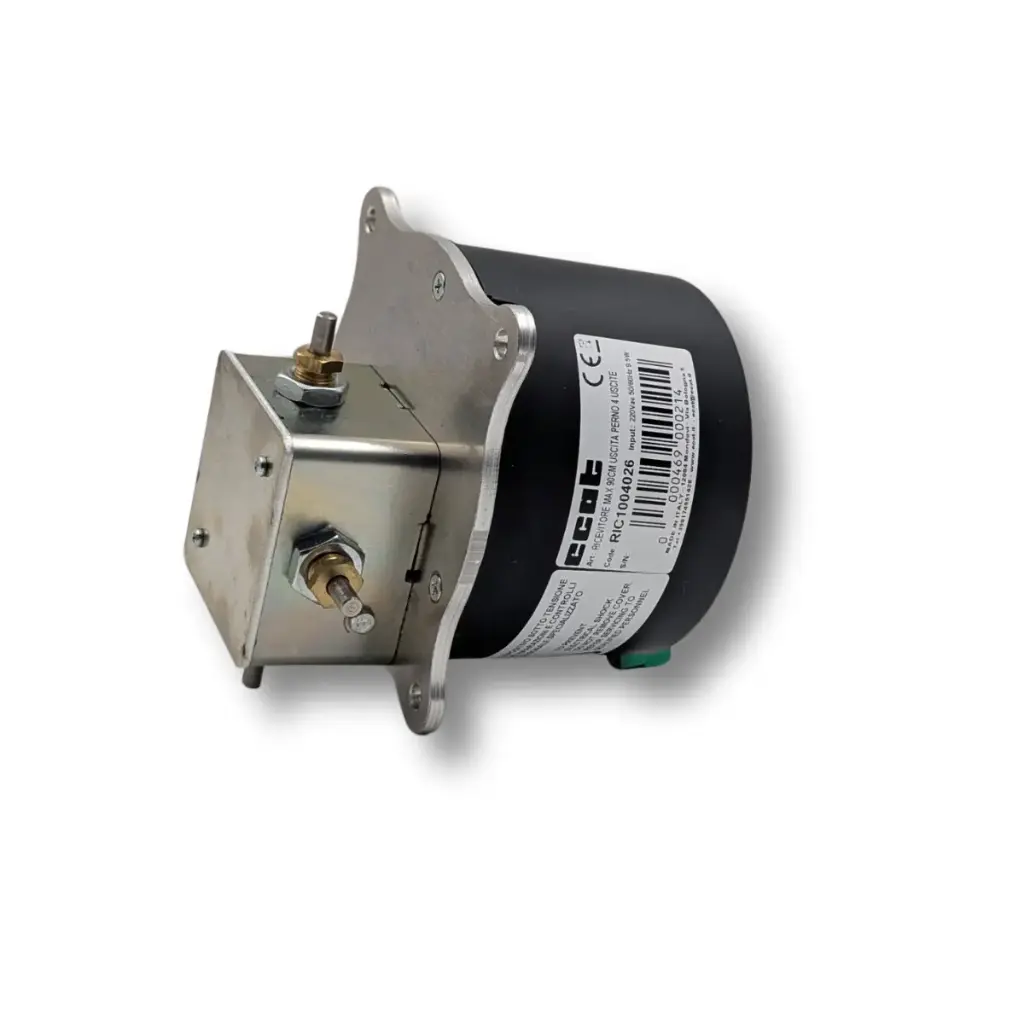

Clock Movement without Minute Gears – 4 Outputs for Dials up to 90 cm
Clock receiver with 4 outputs, to be used with one or more motion works. Suitable for clock dials up to 90 cm. Available in 110V and 220V versions.
Clock movement without minute gear, designed for driving the hands of tower or outdoor clocks. It works in combination with a master clock, receiving a 60-second pulse and distributing it to 4 independent outputs. Built with a sturdy structure and stainless steel shaft for reliable operation even outdoors. Compatible with 220V or 110V power supply, suitable for dials up to 90 cm in diameter.
Technical Characteristics
- To be used combined with one or more cog wheels
- Dial diameter: max 90 cm (2.9 ft)
- Outputs: 4
- Power: 220-230 VAC, 50/60 Hz, 9.5 W (RIC1004026); 115 VAC, 50/60 Hz, 3.5 W (RIC1004018)
- Functioning: minute inversion phase
- Stainless steel outputs (AISI 304)
| Power Supply | 220 V or 110 V |
| Related Products | To be used combined with one or more cog wheels |
| Diameter dial | max 90 cm (2,9 ft) |
| Frequency [Hz] | 50 Hz, 60 Hz |
| Engine power [w] | 9.5 W, 2.7 W |
| Functioning | Minute inversion phase |
| Output material | Stainless steel outputs (AISI 304) |
