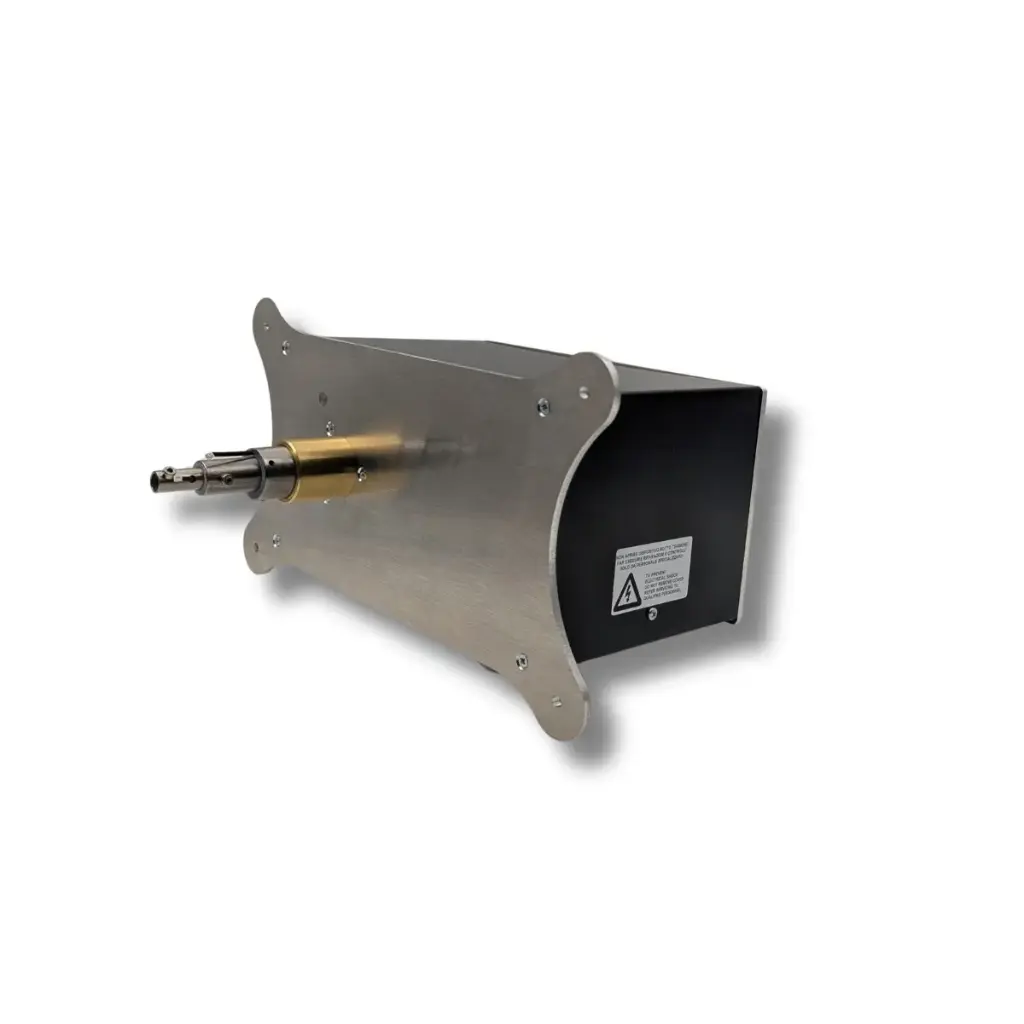

Clock Receiver for Illuminated Hands – Up to 300 cm Dial

https://shop.ecat.it/web/image/product.template/235/image_1920?unique=f782cb2
Movement for tower clocks with illuminated hands. Suitable for dials up to 300 cm. Ideal for LED lighting systems. Weather-resistant construction.

To complete the order, please enter the shaft length L (refer to the technical drawing in the Documents section).

0.00 € 0.0 EUR 0.00 € Tax Excluded

825.00 € Tax Excluded

Please login or register

  • Back lighting
  • Custom size
  • Case
  • Pin material
  • Wheel material
  • General data
  • General data
  • Diameter dial
  • Power Supply
  • Frequency [Hz]
  • Frequency [Hz]
  • Functioning
  • Output material

This combination does not exist.

Access the B2B portal

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

This receiver is specifically designed for the movement of tower clocks with illuminated hands. It is compatible with LED lighting systems, but can also work with other adapted light sources.

The system ensures high night-time visibility while maintaining aesthetic appearance during the day.

The housing is made of aluminium, resistant to weather conditions. It includes bronze wheels, zinc-coated iron shaft with insulating bushings, and teflon antifriction coating.

Operation is by phase reversal through a reversing switch. Available in 220–230 V or 110–115 V versions.

Technical Characteristics

  • Case in aluminium, resistant to weather conditions
  • Wheels in bronze
  • Pin output in zinc-coated iron with ertalyte bushes to protect the electric connection
  • Antifriction bearing in teflon
  • Collegamento elettrico tramite commutatore
  • Functioning: minute inversion phase
  • Power: 220-230 VAC, 50/60 Hz, 30 W; 110/115 VAC, 50/60 Hz, 29.7 W

Back lighting Normal or RGB
Custom size L (mm)
Case Case in aluminium, resistant to the weather conditions
Pin material Pin output in zinc coated iron with ertalyte bushes to protect the electric connection
Wheel material Wheels in brass
General data Antifriction bearing in tefl on, Electric connection through commutator
Diameter dial max 300 cm (9,8 ft)
Power Supply 220 V
Frequency [Hz] 50 Hz, 60 Hz
Functioning Minute inversion phase
Output material Stainless steel outputs (AISI 304)

Product weight: 0.0 kg

Product volume: 0.0 m³

SKU:
