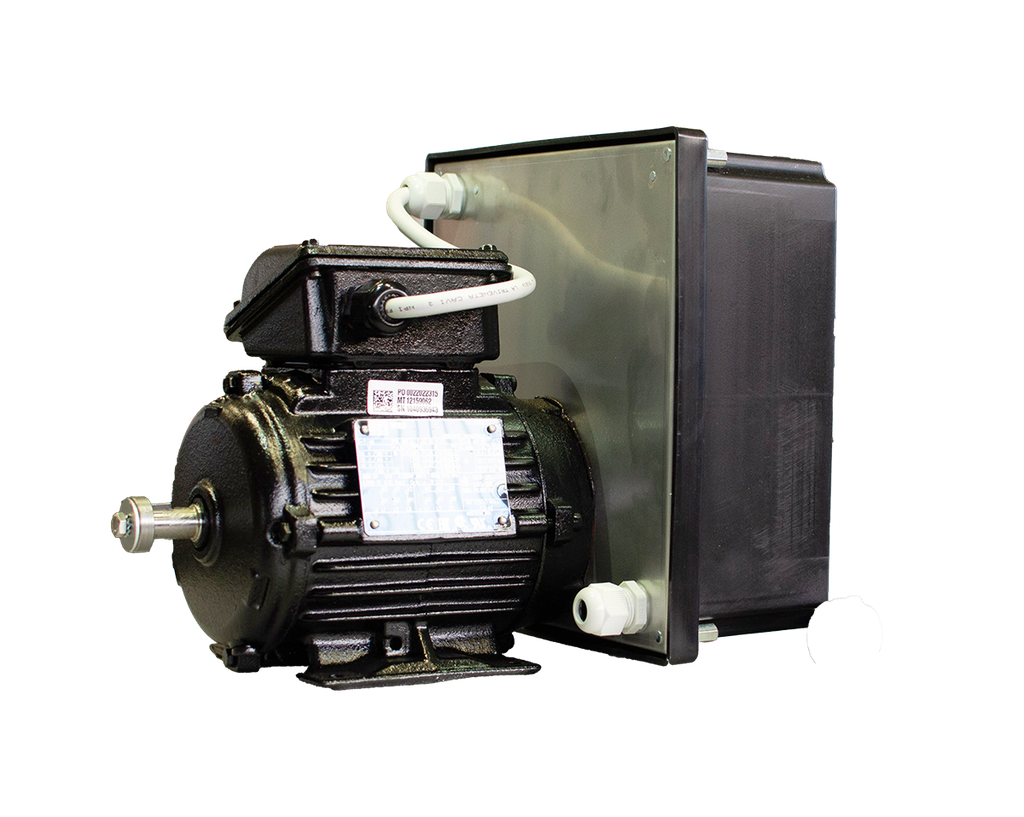

Ecatron Electronic Motor for Bell Oscillation

https://shop.ecat.it/web/image/product.template/218/image_1920?unique=e8b442c
Innovative electronic system for bell ringing that combines modern technology with tradition. Ensures safety, respect for the bell tower, and authentic sound quality, with automatic control and easy programming. Single-phase 220 VAC power supply with automatic three-phase generation, use of standard low-power motors, simple adjustment of sound parameters and system self-diagnosis.

0.00 € 0.0 EUR 0.00 € Tax Excluded

1,304.00 € Tax Excluded

Please login or register

  • Motor
  • General data
  • Case
  • Power Supply
  • Index of protection
  • Related Products

This combination does not exist.

Access the B2B portal

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

ECATRON is a revolutionary bell-ringing control system that harmoniously blends electronic technology and centuries-old tradition.

Designed for maximum safety and reliability, it reduces mechanical stress, protects the bell frame and tower, and includes an emergency brake for maximum protection in case of malfunction.

With a focus on innovation, ECATRON operates on a 220 VAC single-phase power supply and automatically generates three-phase current. It uses standard low-power motors, allows easy sound parameter adjustment, and features self-diagnosis for compatibility with existing systems.

The unit automatically regulates performance according to load and temperature, providing electronic protection against overheating and eliminating the need for additional electrical panels in the tower.

Fully respectful of tradition, ECATRON preserves the quality of manual bell ringing while enabling synchronized peals and special ringings (clapper stop, synchronized tolling, passing bell).

Main technical features:

  • 6-pole asynchronous three-phase motor, IP55 protection

  • ABS control housing

  • 220 VAC power supply

  • Additional programmable relay outputs

Motor 0.18Kw or 0.25Kw or 0.37Kw or 0.55Kw or 0.75Kw or 1.10Kw
General data 6P asynchronous three-phase motor
Case ABS protective case of the system control
Power Supply 220 V
Index of protection IP55
Related Products Additional programmable relay outputs

Product weight: 0.0 kg

Product volume: 0.0 m³

SKU:
