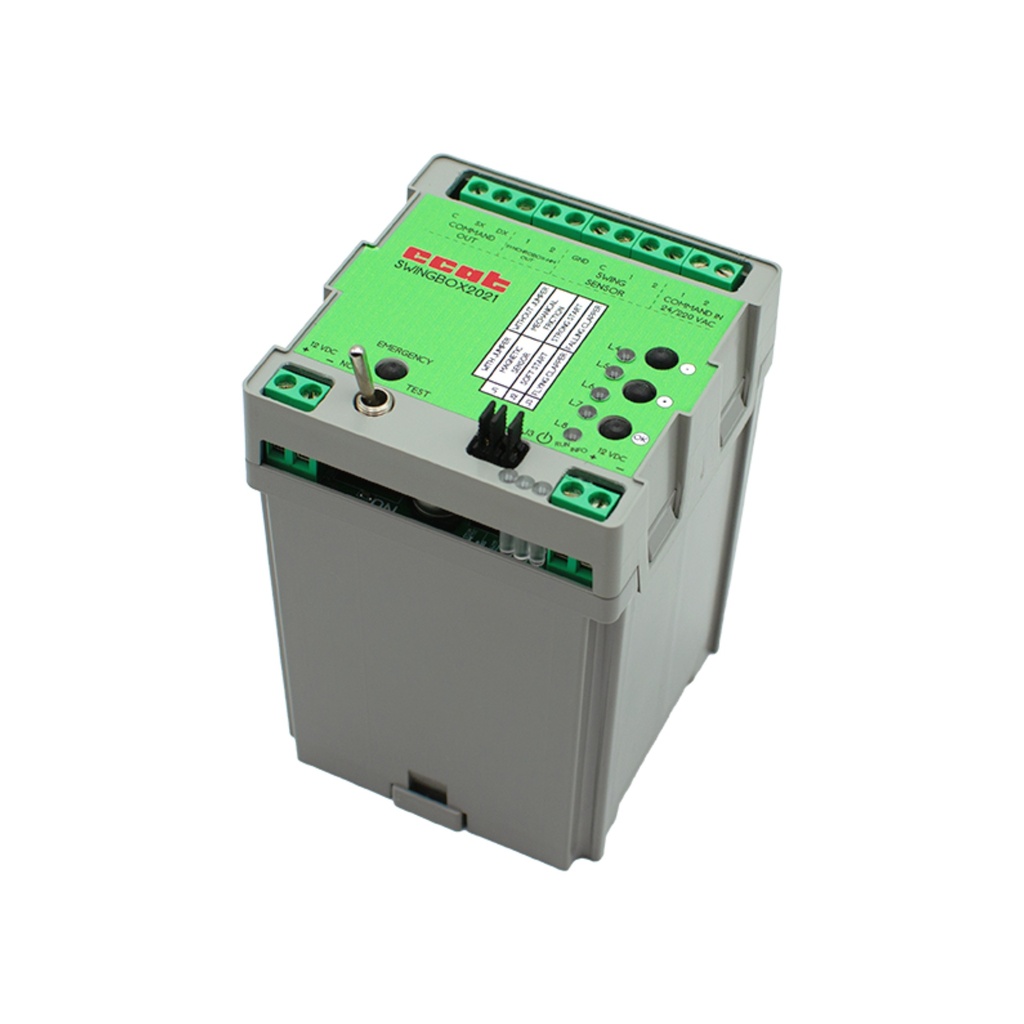

Swingbox – Bell Swing Control Module

https://shop.ecat.it/web/image/product.template/268/image_1920?unique=75dc841

Device for electronically controlling bell oscillation amplitude and duration, compatible with existing motors, ensuring safe operation without structural changes.

0.00 € 0.0 EUR 0.00 € Tax Excluded

189.50 € Tax Excluded

Please login or register

  • Management of Anomalies
  • Settings
  • Command impulses
  • Power Supply
  • Programming Terminal
  • Installation
  • Functioning

This combination does not exist.

Access the B2B portal

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

The Swingbox is a module designed to control the oscillation of bells in monumental clock systems. It enables electronic management of the amplitude and duration of the bell’s swing (ascent and descent), connecting to an existing motor and replacing traditional mechanical control systems without requiring any structural intervention.

Unlike a simple timer or PLC, the Swingbox is a true electronic controller that monitors safety parameters related to oscillation, making the management of moving bells extremely safe.

Technical Characteristics

  • ✅ Electronic control of swing amplitude and duration
  • ✅ Compatible with existing motors
  • ✅ Replaces mechanical systems without structural modifications
  • ✅ Integrated protections for safe operation
  • ✅ 12 VDC power supply, DIN rail mounting
  • ✅ Programming terminal not required
  • ✅ DIN bar for easy installation

Management of Anomalies 4 feedback parameters
Settings Swing amplitude and the braking
Command impulses from 24 VAC to 220 VAC
Power Supply 12 VDC
Programming Terminal Not required
Installation DIN bar
Functioning Mechanical micro clutch or proximity sensor without contact

Product weight: 0.3 kg

Product volume: 0.0012 m³
