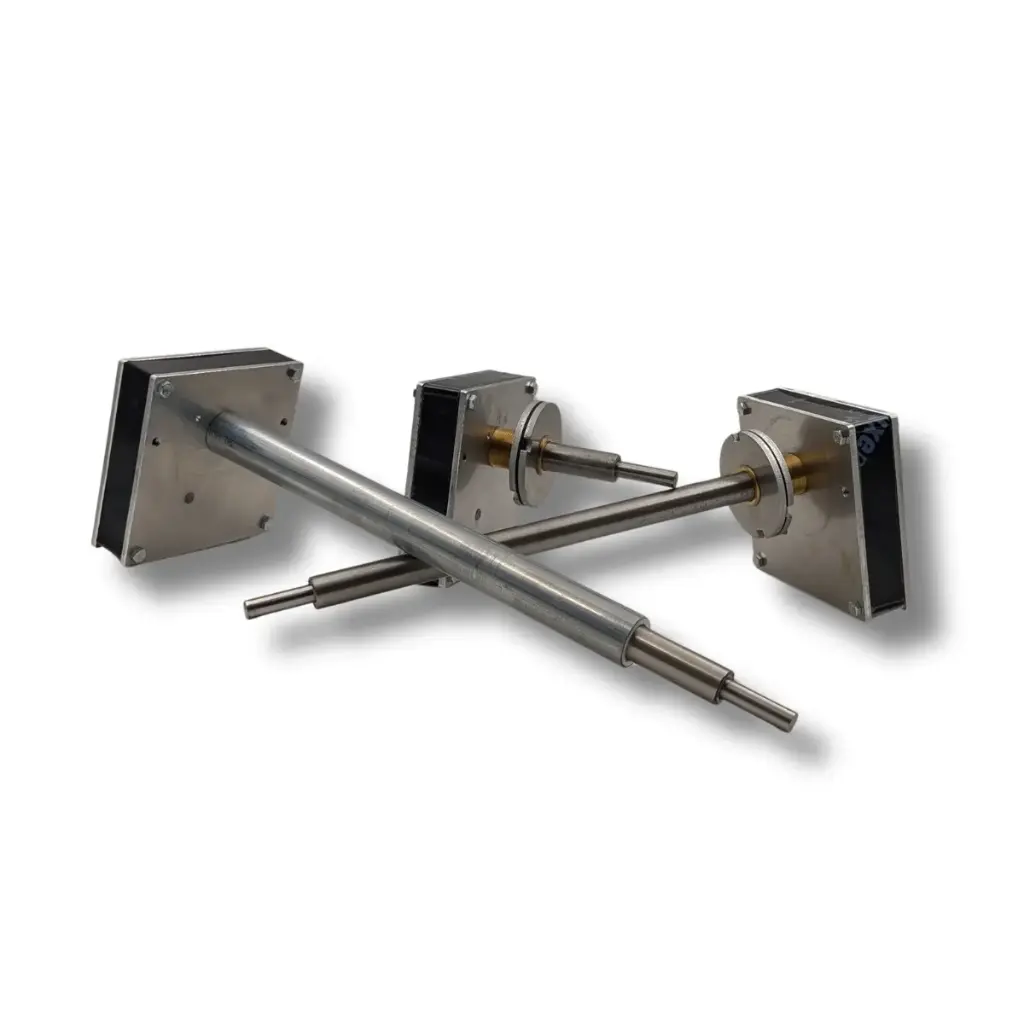

Minute Hands Cog Wheel – Dials up to 400 cm
High-performance minute cog wheel unit for tower clock dials up to 400 cm in diameter.
Built with brass wheels and sprockets, a steel pin, and a protective aluminium cover. Stainless steel (AISI 304) outputs ensure resistance to weather and corrosion.
Available in several versions: with 35 mm or 76 mm bush, up to 1200 mm.
Custom shaft length up to 1200 mm available upon request.
| Bush|Shaft | 35mm or 76mm or 300mm or 600mm or 900mm or 1200mm or Custom size max 1200mm or 300mm + Protection or 600mm + Protection or 900mm + Protection or 1200mm + Protection or Custom size max 1200mm + Protection |
| Wheel material | Wheels in brass |
| Sprocket material | Sprockets in brass |
| Pin material | Pin in steel |
| Case | Cog wheels with protective cover in aluminium |
| Dial | For the command of clock dials up to 400 cm (13,1 ft) |
| Output material | Stainless steel outputs (AISI 304) |
| Custom size | L (mm) |
Product weight: 0.0 kg
Product volume: 0.0 m³
SKU:
