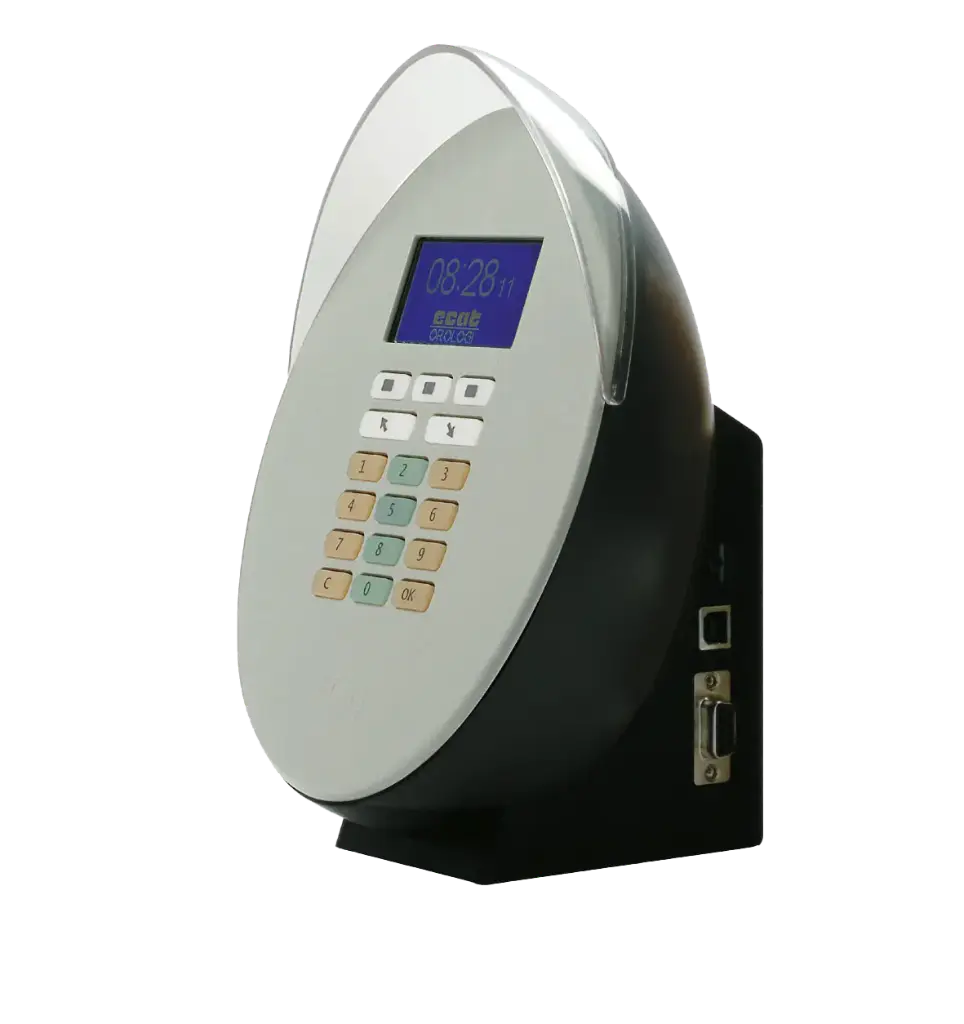

Access Recorder with Contactless Transponder Attendance Detection
Ovo terminal with proximity badge reader, supports memory cards, USB and RS232 ports. Available in Full or Standard versions.
The Ovo terminal is a flexible, economical solution with a refined design, and can facilitate work management operations at a competitive cost.
Ovo enables data transfer via memory cards, USB and RS232 ports. It is equipped with a proximity badge reader, preventing wear and damage to the cards and to the terminal itself. Choose the version that best suits your needs: Ovo Full or Standard.
Consult the technical features for details on the various different functions.
Consulta le caratteristiche tecniche per scoprire nei dettagli le diverse funzionalità.
Technical Characteristics
- Complete package hardware/software
- Multi-company management
- Management of up to 200 employees
- Multipoint terminal network
- Export data by USB – RS232 – memory card
- 21,000 storable clocking in/out (10 years data retention without power supply)
- Transponder reading without any contact, with 64-bit safety code
- Data format compatible for sending by Internet
- Device for DCF synchronization*
- Device for GPS synchronization*
- Memory card and USB reader for memory card*
- Graphic display 128 x 64 (5.04 x 2.52 in), blue colour
- Power supply 110-220 VAC
- Container in ABS injected
- Table or wall mounting
- Does not require qualified personnel
- 2 programmable relay outputs 10A/250 V*
Minimum requirements: Hardware: PC with 512 MB of RAM; Software: Windows XP SP3 or higher.
*Optional
| Product | Complete package hardware/software, Multi-company management, Management of up to 200 employees, Multipoint terminal network |
| Export Data | USB – RS232 – memory card |
| Storable clocking in/out | 21.000 (10 years data retention without power supply) |
| Badge Reading | Transponder reading without any contact with safety code 64 bit |
| Synchronization | Device for DCF or GPS synchronization (optional) |
| Data Storage | Memory card and USB reader for memory card (optional) |
| Power Supply | 110 V, 220 V |
| Mounting | Table or wall |
| Relay outputs | 2 programmable relay outputs 10A/250 V (optional) |
| Minimum requirements | Hardware: PC RAM 512 MB, Software: Windows XP SP3 or upper |
Product weight: 1.1 kg
Product volume: 0.0094 m³
